기본형식
Basic Model
외관형상
DS - 1700



①.MODEL:DS-1700 ②.HEAD TERMINAL ③.IN PUT ④.ELE'PAIR ⑤.CALSS ⑥.SHEATH MAT'L
⑦.SHEATH DIAMETER ⑧.OUT DIAMETER(D) ⑨.LENGTH(L) ⑩THREAD ⑪.TIP SHAPE ⑫.CABLE GLAND ⑬.OTHER
HOW TO ORDER

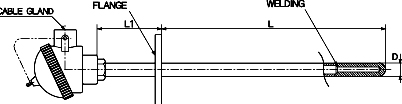

DS - 1710



①.MODEL:DS-1710 ②.HEAD TERMINAL ③.IN PUT ④.ELE'PAIR ⑤.CALSS ⑥.SHEATH MAT'L
⑦.SHEATH DIAMETER ⑧.OUT DIAMETER(D) ⑨.LENGTH(L×L1) ⑩.FLANGE RATE ⑪.TIP SHAPE
⑫.CABLE GLAND ⑬.OTHER
HOW TO ORDER
DS - 1720



①.MODEL:DS-1720 ②.HEAD TERMINAL ③.IN PUT ④.ELE'PAIR ⑤.CALSS ⑥.SHEATH MAT'L
⑦.OUT DIAMETER(D×D1) ⑧.LENGTH(L×L1) ⑨.FLANGE RATE ⑩.TIP SHAPE ⑪.CABLE GLAND
⑫.OTHER
HOW TO ORDER
DS - 1730



①.MODEL:DS-1730②.HEAD TERMINAL ③.IN PUT ④.ELE'PAIR ⑤.CALSS ⑥.SHEATH MAT'L
⑦.OUT DIAMETER(D) ⑧.LENGTH(L×L1) ⑨.PAD(A×B×T) ⑩.TIP SHAPE ⑪.CABLE GLAND ⑫.OTHER
HOW TO ORDER
DS - 1740



①.MODEL:DS-1740 ②.HEAD TERMINAL ③.IN PUT ④.ELE'PAIR ⑤.CALSS ⑥.SHEATH MAT'L
⑦.OUT DIAMETER(D) ⑧.LENGTH(L) ⑨PAD(A×B×T) ⑩.TIP SHAPE ⑪.CABLE GLAND ⑫.OTHER
HOW TO ORDER
